Specifications

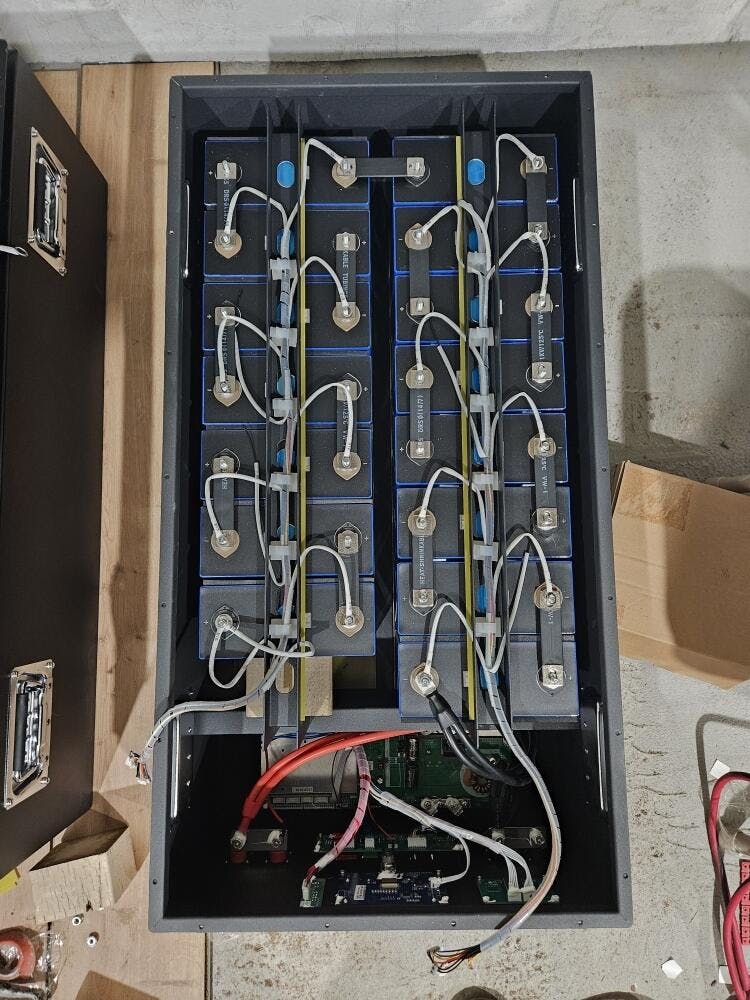

Product Model:KESHE H5115 16S 200A DIY Battery Box with JK 2A Active Balancer
Suitable Battery:
For LiFePO4 Cells EVE 280Ah/304Ah
CATL 280Ah/310Ah/320Ah
LISHEN 272Ah/REPT 280Ah
BMS: 16S1P 200A, Bluetooth APP
Active Balancer :JK 2A Active Balancer
Battery Pack Type: Server Rack Battery box,stackable type, up to 15 batteries in parallel
Nominal Voltage: 51.2V
BMS Functions:
Over charge protection, Over discharge protection, Over current protection, Cell balancing, Temperature protection CAN and RS485 communication
Maximum discharge current: 200A (-20°C~60°C; 65±20%RH)
Discharge cut-off voltage: 40.0 V Battery standard cut-off voltage
Communication protocol: CAN/RS485/RS232
BMS Warranty: 2years
Gross Weight: 27kgs
Dimension: 810*428*258mm

Packing List
1 * Battery Case (Bottom case, Front Bracket, 2*Top Bracket, Front Panel,Top cover)1.5mm thick black iron box, size: 810*428*257.5mm
4*handles
1*BMS 16S 200A, 280*100mm, with RS232/485/CAN protocol, LED power light and LCD display
1*B-Terminal wire M8 terminal split out two M6 terminal wire, black 3239AWG6# wire length respectively 330/310mm
1*B+ Terminal Wire M8 terminal double wire to M6 terminal wire, red 3239AWG6# wire length 300mm*2
1*P-Terminal Wire M6 terminal split two M6*2 terminal wires, black 3239AWG6# wire length 220/200mm respectively
1*C-terminal line M8 terminal double line to M8 terminal line, black 3239AWG6 # line length 80mm
1*Sampling line H5115C special core sampling line, line end pressure good M8 ring terminal, wrapped in white Ф8mm winding tube
2*Terminal block 200A black, WL-CNT-250-C-B
2*Terminal block 200A red, WL-CNT-250-C-R
8*EVA Cotton Single Side Adhesive 200*170*5mm
4*EVA cotton Single side adhesive backing 60*25*1mm
2*Epoxy board Size: 606*175*1mm
2*Epoxy board Size: 600*40*1mm
28*Epoxy plate Size: 200*20*2mm
4*Epoxy plate Size: 604*18*0.5mm


DownLoad the software and installation guide:
https://mega.nz/folder/siVUlI5L#x82c01IGta1QXHQg2ITIhQ
