Specifications
Product Model:KESHE H5115 16S 200A DIY Battery Box with JK 2A Active Balancer
Suitable Battery:
For LiFePO4 Cells EVE 280Ah/304Ah
CATL 280Ah/310Ah/320Ah
LISHEN 272Ah/REPT 280Ah
BMS: 16S1P 200A, Bluetooth APP
Active Balancer :JK 2A Active Balancer

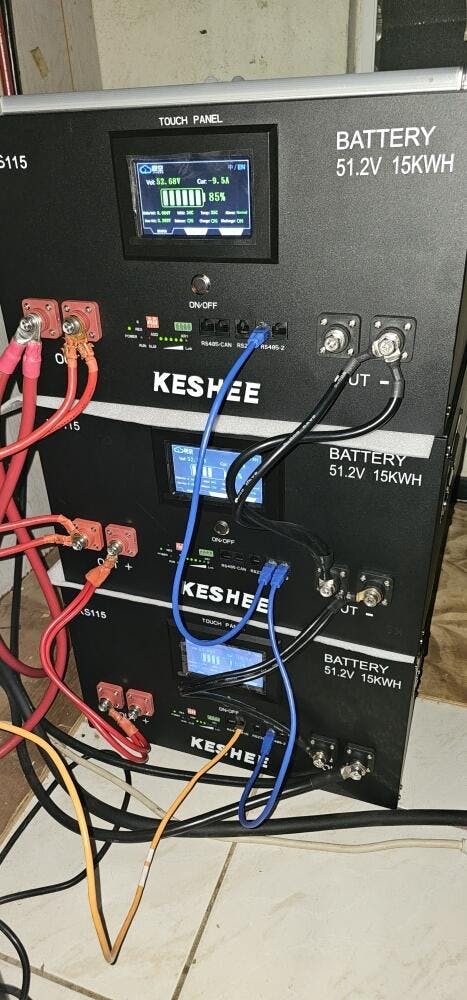

Battery Pack Type: Server Rack Battery box,stackable type, up to 15 batteries in parallel
Nominal Voltage: 51.2V
BMS Functions:
Over charge protection, Over discharge protection, Over current protection, Cell balancing, Temperature protection CAN and RS485 communication
Maximum discharge current: 200A (-20°C~60°C; 65±20%RH)
Discharge cut-off voltage: 40.0 V Battery standard cut-off voltage
Communication protocol: CAN/RS485/RS232
BMS Warranty: 2years
Gross Weight: 27kgs
Dimension: 810*428*258mm

Packing List
1 * Battery Case (Bottom case, Front Bracket, 2*Top Bracket, Front Panel,Top cover)1.5mm thick black iron box, size: 810*428*257.5mm
4* Carrying handles
1*JK BMS 16s 200A with 2A active balancer, 300*100mm, with RS232/485/CAN protocol,
1*touch LCD display
1 set*Sampling PCB size: 578*46*1.5mm, welded M8 ring terminal wire, wire length 85mm.A+B boards
2*Sampling terminal wire 2.54 male terminal 13P to 2.0 with buckle 7P+6P (1007-22 No.-370MM long)
1*B-Terminal Wire M8 terminal split two M6*2 terminal wires, black 3239AWG6# wire length respectively 330/310mm
1*B+ terminal wire M8 terminal double wire to M6 terminal wire, red 3239AWG6# wire length 300mm*2
1*P-Terminal line M6 terminal split out two M6 * 2 terminal line, black 3239AWG6 # wire length 220/200mm respectively
1*C-terminal line M8 terminal double line to M8 terminal line, black 3239AWG6 # line length 80mm * 2
1*Power switch 16H flat metal reset switch
2*Terminal block 200A terminal block black, WL-CNT-250-C-B
2*Terminal Block 200A Terminal Block Red, WL-CNT-250-C-R
1*Parallel fixing piece 1.5mm black iron piece, straight piece:2pcs+bent piece:2pcs
8*EVA Cotton Single Side Adhesive 200*170*5mm
4*EVA cotton Single side adhesive backing 60*25*1mm
2*Epoxy board Size: 606*175*1mm
2*Epoxy board Size: 600*40*1mm, 8 oval holes in the center
28*Epoxy board Size: 200*20*2mm
4*Epoxy plate Size: 604*18*0.5mm

KESHEE DIY box with JK BMS Assemble Demostration Video in YouTube

https://www.youtube.com/watch?v=Rcm6XUvtQiA

About the delivery time:
a. EU, US, CA, Australia are including Shipping Fee and tax. By sea take 50-55work days.
b. For Ukraine, door to door shipping by sea takes 40-50work days; Remote areas is not available to offer shipment, please contact the customer service.
c. For Russia, Belarus, door to door shipping by sea takes 30-45 work days.
d. Asia countries door to door shipping by sea takes 20-30 work days.

The shipping information will be updated after the package finished the custom clearance and pick up by the local express.
Please make sure the recipient information is correct. After the parcels arrive in local transport station, it needs to contact you to arrange the shipment. If due to your phone number is not right or could not contact you through message cause the delivery fail. We will not accept the dispute.
